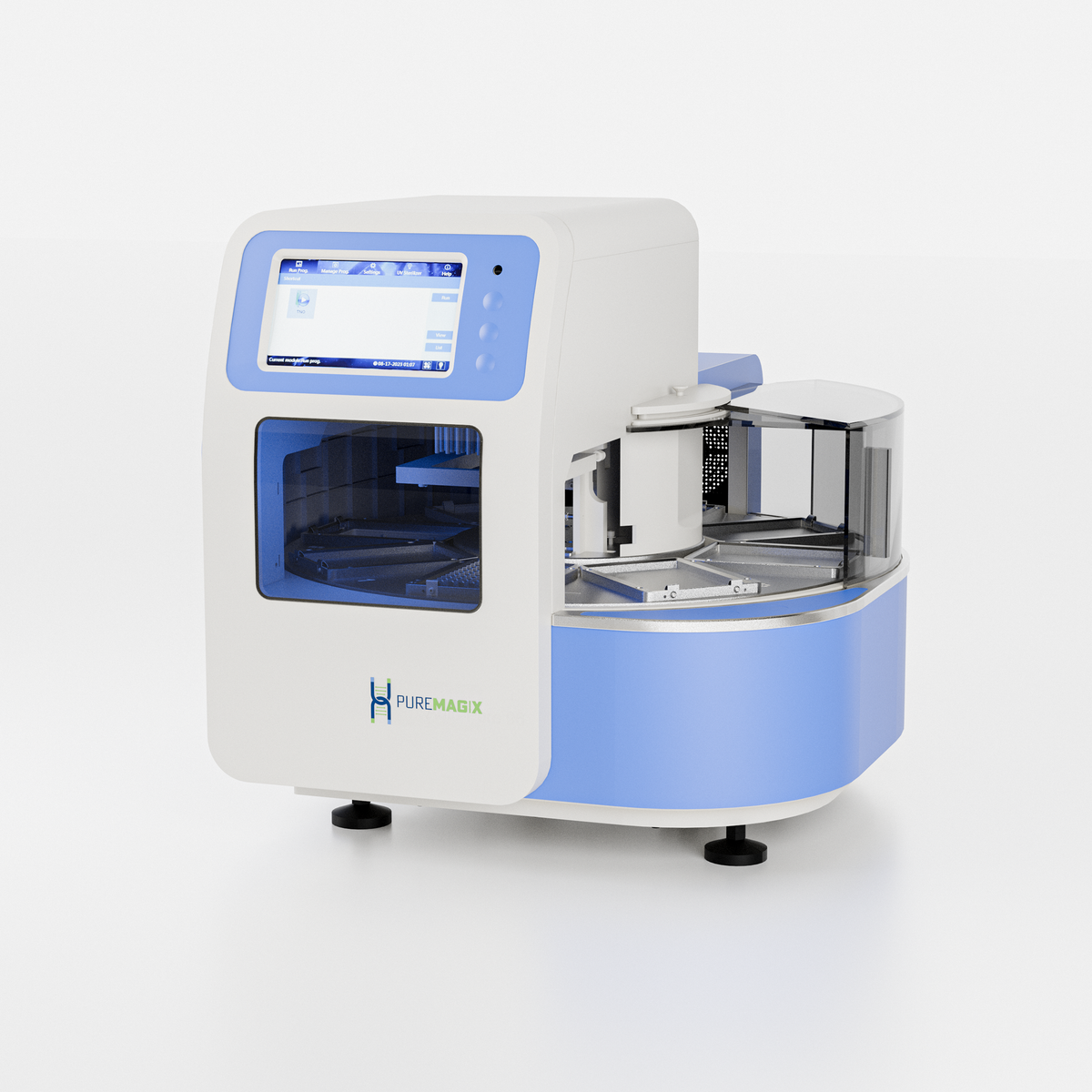

pureMAGiX® 96 — High-Throughput Automated Nucleic Acid Extraction System

pureMAGiX® 96 — High-Throughput Automated Nucleic Acid Extraction System

HIGH-THROUGHPUT 96-SAMPLE AUTOMATION
96 Samples Up to 1 mL 30–60 Minute Runs
High-throughput, open-system magnetic-bead extraction for laboratories processing up to 96 DNA or RNA samples per run.
$34,500.00 USD
$34,500.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
PRODUCT OVERVIEW

BUILT FOR RELIABLE AUTOMATED SAMPLE PROCESSING

The pureMAGiX® 96 is a high-throughput, open-system nucleic acid extraction and purification platform designed to process 1–96 samples per run. Using magnetic-bead separation technology, the system supports 50–1,000 µL reaction volumes and typical 30–60 minute workflows. A center rotary table, 7-inch touchscreen, editable protocols, modular heating, automated consumable handling, UV sterilization, front-access observation, and end-of-run reporting support efficient and traceable clinical, diagnostic, and research workflows.

CHEMISTRY & WORKFLOW COMPATIBILITY

BUILT FOR FLEXIBLE MAGNETIC-BEAD EXTRACTION WORKFLOWS

Designed to integrate with PureMAGiX® chemistry and other validated magnetic-bead reagent workflows.

Open-system platform compatible with BasePrime pureMAGiX® chemistry and other validated magnetic-bead workflows. Optional integration with robotic arms, liquid handlers, Ethernet remote control, Wi-Fi, and 4G expansion supports broader laboratory automation.

TECHNICAL SPECIFICATIONS

PRODUCT DETAILS

Key specifications for evaluating throughput, processing capacity, and fit within your laboratory workflow.

Throughput: 1–96 samples

Processing volume: 50–1,000 µL

Typical run time: 30–60 minutes

Consumables: 96-position deep-well plate and 96-position magnetic rod comb

Purification accuracy: >95% positive rate at 100 copies

Collection efficiency: >95%

Stability: CV <5%

Lysis temperature: Room temperature to 120°C

Elution temperature: Room temperature to 120°C

Plate positions: Eight

Heating positions: Two standard; customizable up to four

User interface: 7-inch touchscreen, three shortcut buttons, external mouse support

Preset programs: Eight

Program storage: Up to 100 programs

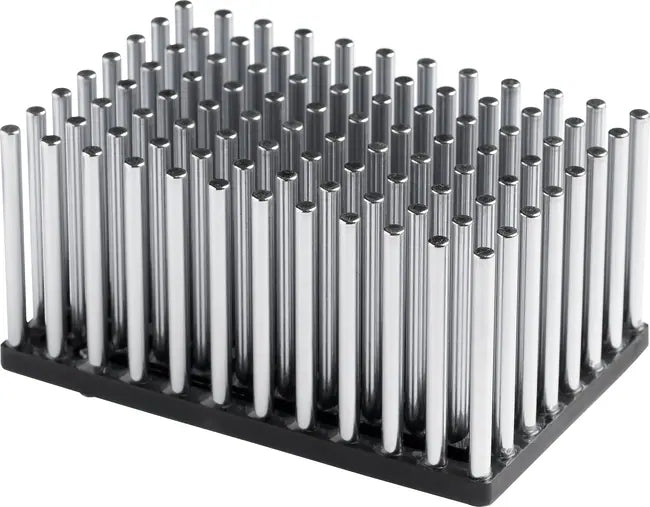

Magnetic rod-comb handling: Automatic loading/unloading; >99.99% verified reliability

Connectivity: Ethernet remote-control expansion, Wi-Fi, optional 4G

Contamination control: UV sterilization, disposable consumables, drip-control features

Data storage: Built-in SD card with end-of-run report generation

Power: 300 W

Dimensions: 560 × 620 × 500 mm (22.05 × 24.41 × 19.69 in)

Weight: 54 kg (119.0 lb)

APPLICATIONS

BUILT AROUND YOUR LABORATORY WORKFLOW

Designed to support automated nucleic acid extraction and magnetic-bead sample preparation across clinical, diagnostic, and research workflows.

  • High-throughput DNA and RNA extraction
  • Clinical and diagnostic laboratory workflows
  • Research, genomics, and sequencing sample preparation
  • Blood, body-fluid, tissue, and other validated sample types
  • Laboratories requiring traceability and modular workflow configuration
  • Optional integration with robotic arms and liquid-handling systems
RECOMMENDED PUREMAGiX® KITS

RECOMMENDED CHEMISTRY FOR THIS AUTOMATION PLATFORM

Explore PureMAGiX® extraction kits selected to align with the throughput, sample types, and workflow capabilities of this system.

pureMAGiX® Lightning Viral DNA/RNA Extraction Kit (DR910)
PUREMAGiX® EXTRACTION KIT

pureMAGiX® Lightning Viral DNA/RNA Extraction Kit (DR910)

View Kit
pureMAGiX® purePATH® Pathogen DNA/RNA Extraction Kit (DR1064)
PUREMAGiX® EXTRACTION KIT

pureMAGiX® purePATH® Pathogen DNA/RNA Extraction Kit (DR1064)

View Kit
pureMAGiX® Blood DNA Extraction Kit (DR760)
PUREMAGiX® EXTRACTION KIT

pureMAGiX® Blood DNA Extraction Kit (DR760)

View Kit
pureMAGiX® Multi-Sample RNA Extraction Kit (R1060)
PUREMAGiX® EXTRACTION KIT

pureMAGiX® Multi-Sample RNA Extraction Kit (R1060)

View Kit
pureMAGiX® Saliva & Buccal DNA Extraction Kit (DR500)
PUREMAGiX® EXTRACTION KIT

pureMAGiX® Saliva & Buccal DNA Extraction Kit (DR500)

View Kit
pureMAGiX® Stool DNA Extraction Kit (D1063)
PUREMAGiX® EXTRACTION KIT

pureMAGiX® Stool DNA Extraction Kit (D1063)

View Kit
Additional PureMAGiX® chemistry, kit formats, and workflow configurations may be available based on your laboratory requirements.
RECOMMENDED CONSUMABLES

CONSUMABLES CONFIGURED FOR THIS AUTOMATION PLATFORM

Explore plates, tip combs, and workflow consumables selected to support reliable operation with this system.

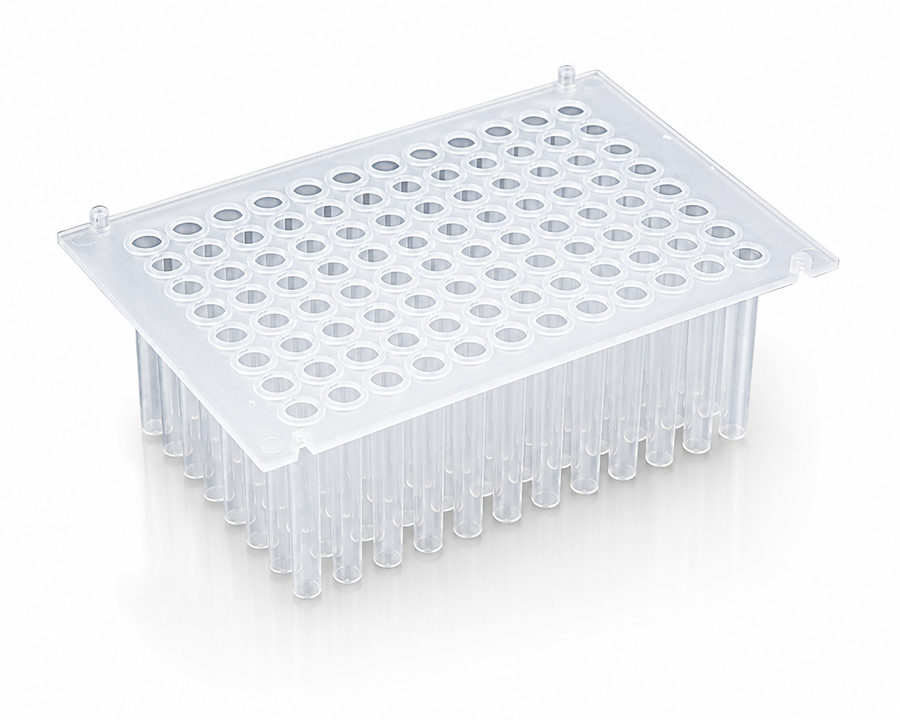

BasePrime 96-Tip Comb for Deep-Well Magnetic Processing
AUTOMATION CONSUMABLE

BasePrime 96-Tip Comb for Deep-Well Magnetic Processing

View Product

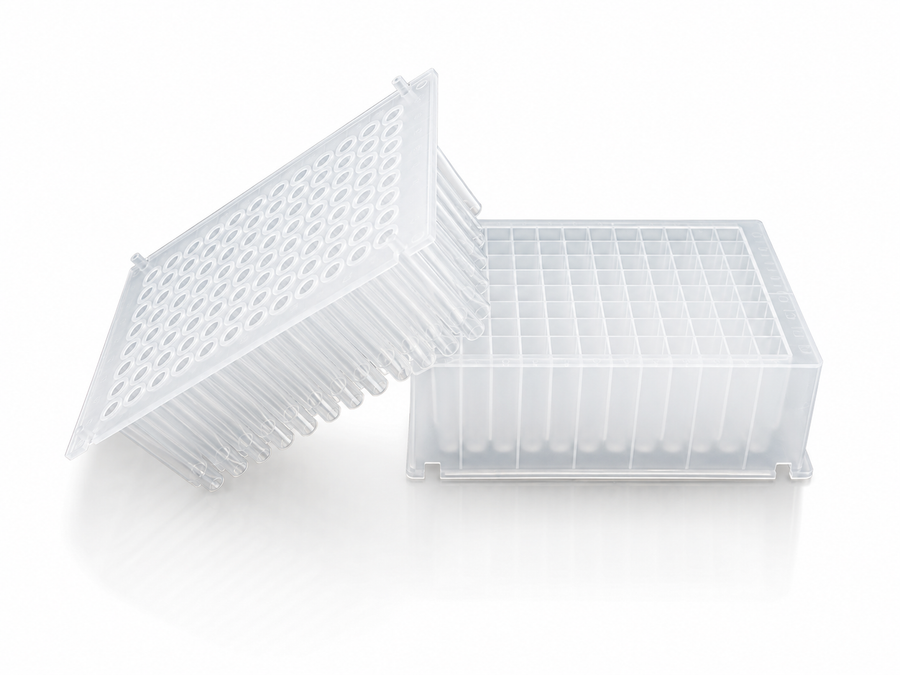

BasePrime 96-Well Deep-Well Plate, 2.2 mL, V-Bottom
AUTOMATION CONSUMABLE

BasePrime 96-Well Deep-Well Plate, 2.2 mL, V-Bottom

View Product

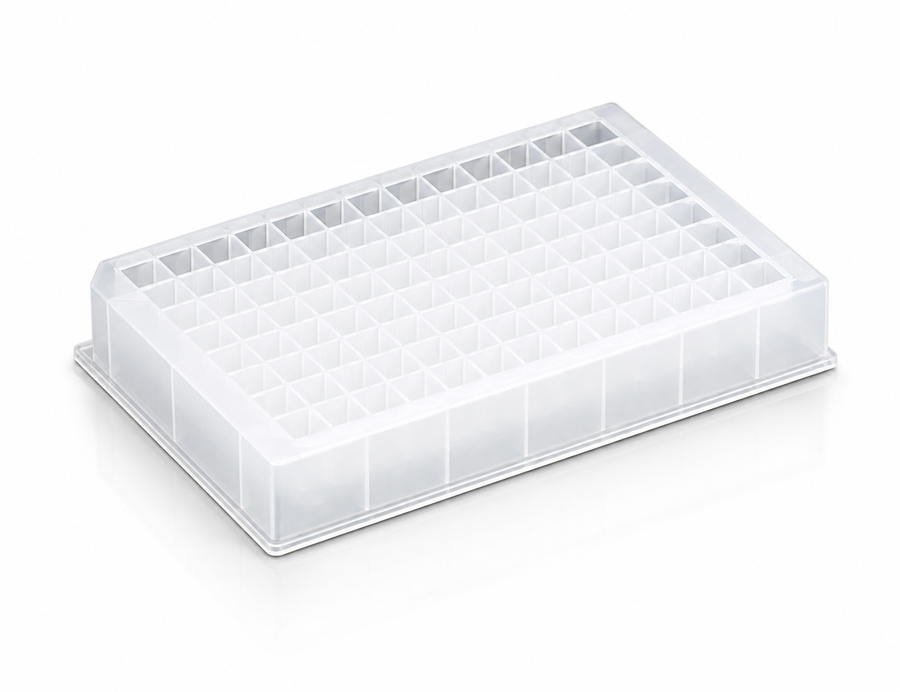

BasePrime 96-Well Shallow-Well Plate, 1.0 mL
AUTOMATION CONSUMABLE

BasePrime 96-Well Shallow-Well Plate, 1.0 mL

View Product
