pureMAGiX® 48 — High-Throughput Automated Nucleic Acid Purification System

pureMAGiX® 48 — High-Throughput Automated Nucleic Acid Purification System

HIGH-THROUGHPUT 48-SAMPLE AUTOMATION
48 Samples Up to 3 mL 30–60 Minute Runs
High-throughput, open-system magnetic-bead extraction for laboratories processing up to 48 DNA or RNA samples per run.
$34,500.00 USD
$34,500.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
PRODUCT OVERVIEW

BUILT FOR RELIABLE AUTOMATED SAMPLE PROCESSING

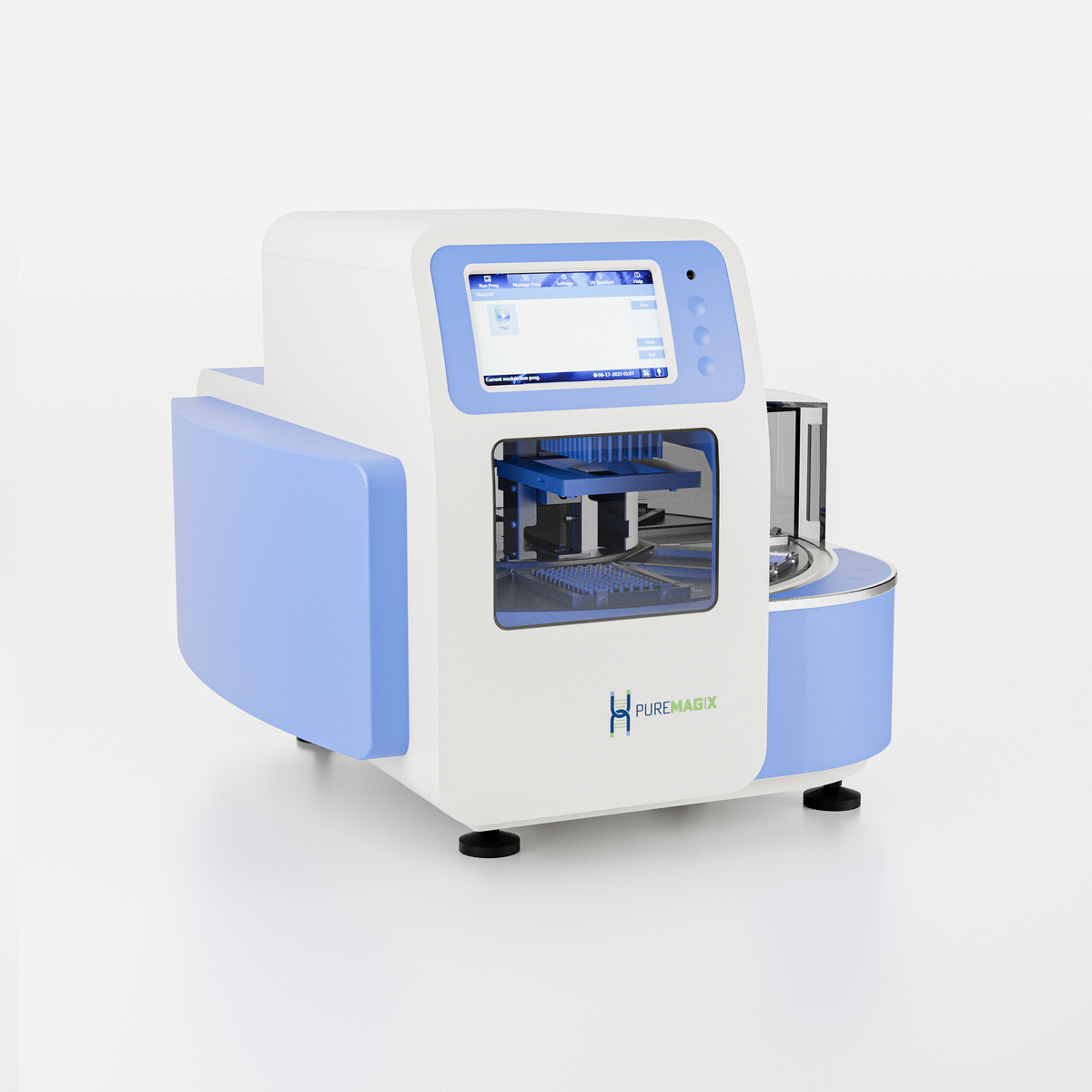

The pureMAGiX® 48 is a high-throughput, open-system nucleic acid extraction and purification platform designed to process 1–48 samples per run. Its 50–3,000 µL processing range, center rotary table, 7-inch touchscreen, editable protocols, modular heating, automated consumable handling, UV sterilization, front-access observation, and end-of-run reporting support efficient and traceable clinical, diagnostic, and research workflows.

CHEMISTRY & WORKFLOW COMPATIBILITY

BUILT FOR FLEXIBLE MAGNETIC-BEAD EXTRACTION WORKFLOWS

Designed to integrate with PureMAGiX® chemistry and other validated magnetic-bead reagent workflows.

Open-system platform compatible with BasePrime pureMAGiX® chemistry and other validated magnetic-bead workflows. Optional integration with robotic arms, liquid handlers, Ethernet remote control, Wi-Fi, and 4G expansion supports broader laboratory automation.

TECHNICAL SPECIFICATIONS

PRODUCT DETAILS

Key specifications for evaluating throughput, processing capacity, and fit within your laboratory workflow.

Throughput: 1–48 samples

Processing volume: 50–3,000 µL

Typical run time: 30–60 minutes

Consumables: 48-position, 3 mL cartridge/deep-well consumable and magnetic rod comb

Purification accuracy: >95% positive rate at 100 copies

Collection efficiency: >95%

Stability: CV <5%

Lysis temperature: Room temperature to 120°C

Elution temperature: Room temperature to 120°C

Plate positions: Eight

Heating positions: Two standard; customizable up to four

User interface: 7-inch touchscreen, three shortcut buttons, external mouse support

Preset programs: Eight

Program storage: Up to 100 programs

Magnetic rod-comb handling: Automatic loading/unloading; >99.99% verified reliability

Connectivity: Ethernet remote-control expansion, Wi-Fi, optional 4G

Contamination control: UV sterilization, disposable consumables, drip-control features

Data storage: Built-in SD card with end-of-run report generation

Power: 300 W

Dimensions: 560 × 620 × 500 mm (22.05 × 24.41 × 19.69 in)

Weight: 54 kg (119.0 lb)

APPLICATIONS

BUILT AROUND YOUR LABORATORY WORKFLOW

Designed to support automated nucleic acid extraction and magnetic-bead sample preparation across clinical, diagnostic, and research workflows.

  • High-throughput DNA and RNA extraction
  • Clinical and diagnostic laboratory workflows
  • Research, genomics, and sequencing sample preparation
  • Blood, body-fluid, tissue, and other validated sample types
  • Workflows requiring processing volumes up to 3 mL
  • Optional integration with robotic arms and liquid-handling systems
