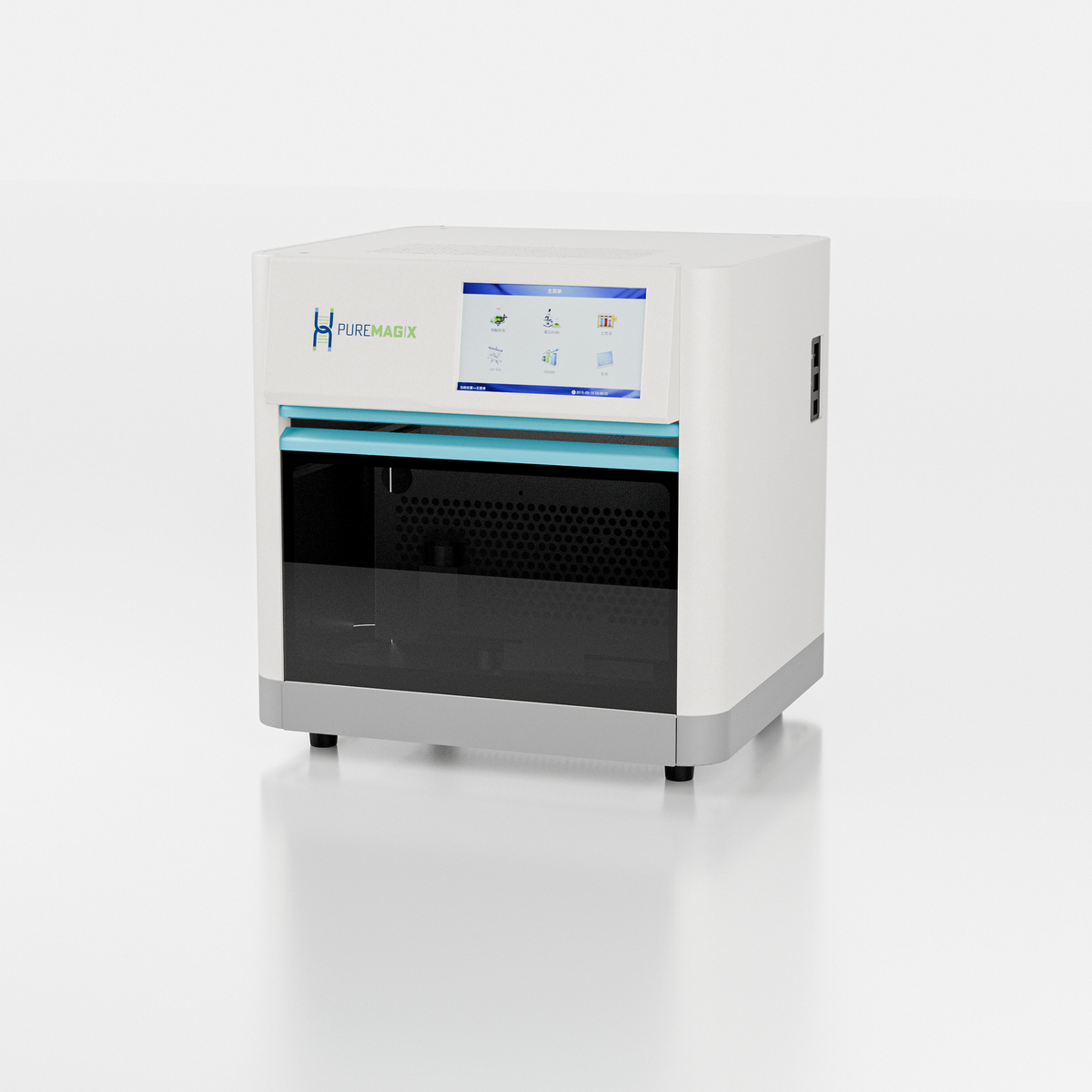

pureMAGiX® 32 — Automated Nucleic Acid Extraction System

Throughput: 1–32 samples

Processing volume: 30–1,000 µL

Typical run time: 10–60 minutes

Plate type: 96-deep-well plate

Stability: CV ≤5%

Lysis temperature: Room temperature to 120°C

Elution temperature: Room temperature to 120°C

Heating time: Room temperature to 120°C in ≤4 minutes

Cooling time: 100°C to 40°C in ≤10 minutes at 25°C ambient

Temperature accuracy: ±0.5°C

Temperature uniformity: ±1°C at 100°C

Mixing control: Ten adjustable levels

User interface: 7-inch color touchscreen

Program storage: Up to 500 programs

Barcode support: External scanner for program and sample identification

Connectivity: Two USB Type-A, one USB Type-B, Ethernet; Wi-Fi capable and reserved 4G

Contamination control: UV sterilization and aerosol-control purification filter

Power: AC 110–240 V, 50/60 Hz, 450 VA

Dimensions: 417 × 410 × 426 mm (16.42 × 16.14 × 16.77 in)

Weight: 29.5 kg (65.0 lb)
