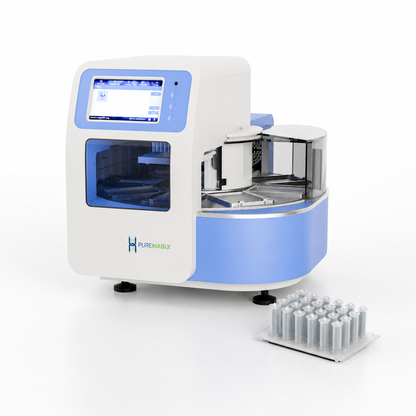

pureMAGiX® 24 — High-Volume Automated Nucleic Acid Purification System

pureMAGiX® 24 — High-Volume Automated Nucleic Acid Purification System

HIGH-VOLUME 24-SAMPLE AUTOMATION
24 Samples Up to 10 mL 30–60 Minute Runs
High-volume, open-system magnetic-bead extraction for laboratories processing up to 24 DNA or RNA samples with volumes up to 10 mL.
$34,500.00 USD
$34,500.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
PRODUCT OVERVIEW

BUILT FOR RELIABLE AUTOMATED SAMPLE PROCESSING

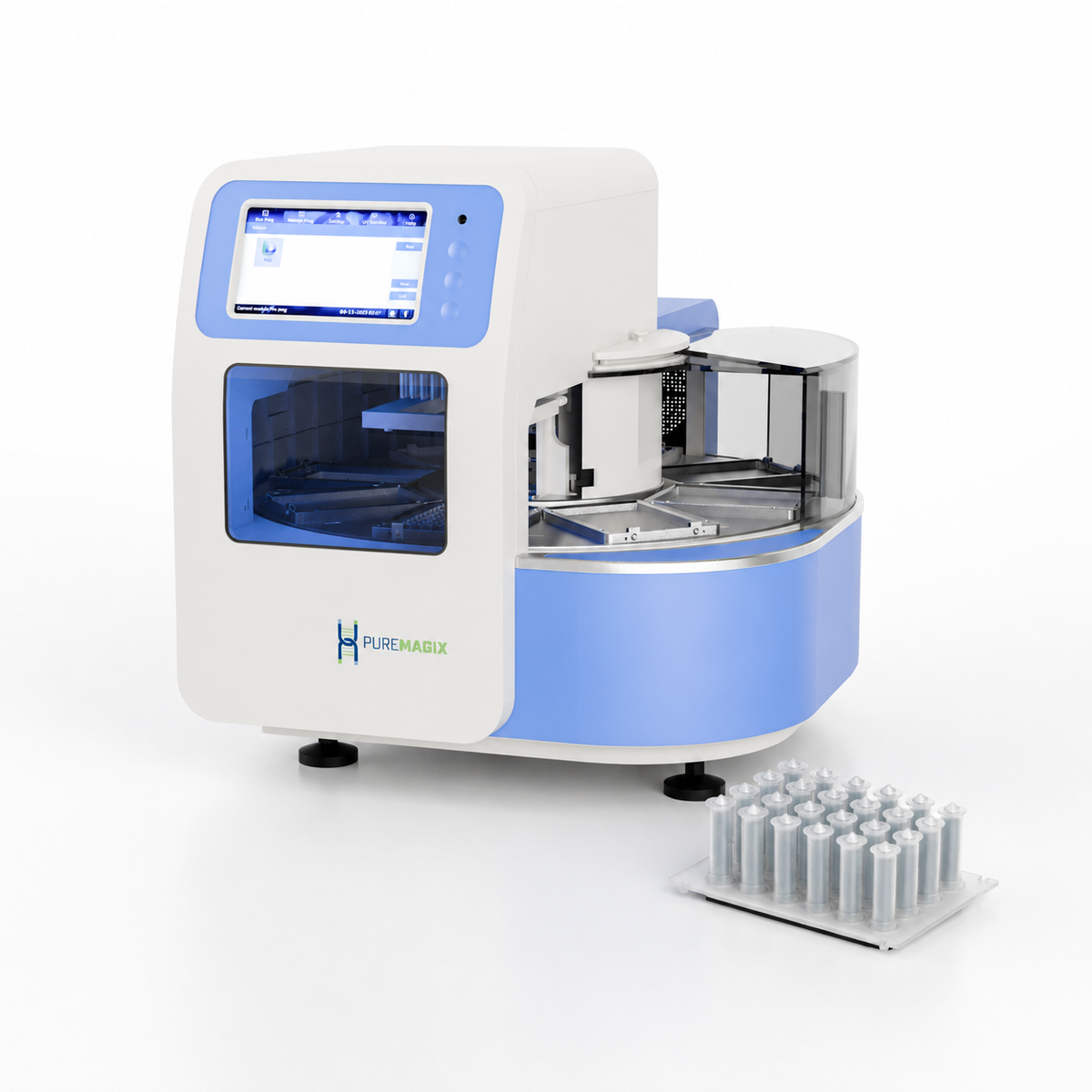

The pureMAGiX® 24 is a high-volume, open-system nucleic acid extraction and purification platform designed to process 1–24 samples per run. Its 50–10,000 µL processing range supports sample volumes beyond conventional 96-well workflows. A center rotary table, 7-inch touchscreen, editable protocols, modular heating, automated consumable handling, UV sterilization, front-access observation, and end-of-run reporting support efficient and traceable clinical, diagnostic, and research workflows.

CHEMISTRY & WORKFLOW COMPATIBILITY

BUILT FOR FLEXIBLE MAGNETIC-BEAD EXTRACTION WORKFLOWS

Designed to integrate with PureMAGiX® chemistry and other validated magnetic-bead reagent workflows.

Open-system platform compatible with BasePrime pureMAGiX® chemistry and other validated magnetic-bead workflows. Optional integration with robotic arms, liquid handlers, Ethernet remote control, Wi-Fi, and 4G expansion supports broader laboratory automation.

TECHNICAL SPECIFICATIONS

PRODUCT DETAILS

Key specifications for evaluating throughput, processing capacity, and fit within your laboratory workflow.

Throughput: 1–24 samples

Processing volume: 50–10,000 µL

Typical run time: 30–60 minutes

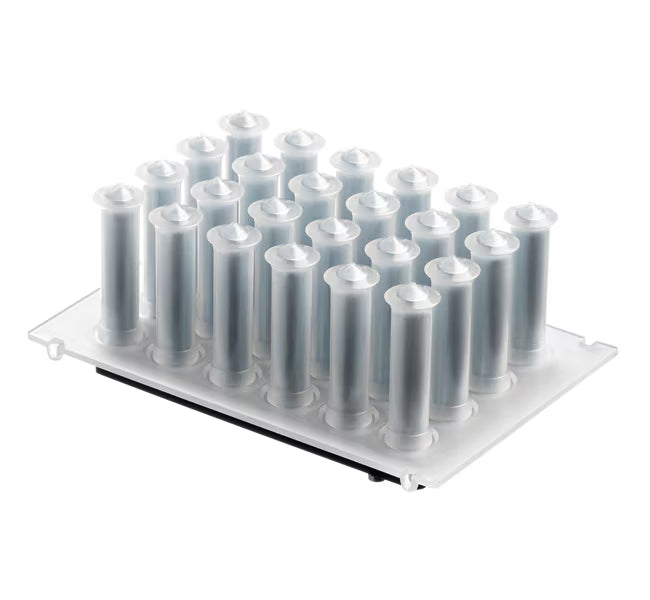

Consumables: 24-position, 10 mL cartridge/deep-well consumable and magnetic rod comb

Purification accuracy: >95% positive rate at 100 copies

Stability: CV <5%

Lysis temperature: Room temperature to 120°C

Elution temperature: Room temperature to 120°C

Plate positions: Eight

Heating positions: Two standard; customizable up to four

User interface: 7-inch touchscreen, three shortcut buttons, external mouse support

Preset programs: Eight

Program storage: Up to 100 programs

Magnetic rod-comb handling: Automatic loading/unloading; >99.99% verified reliability

Connectivity: Ethernet remote-control expansion, Wi-Fi, optional 4G

Contamination control: UV sterilization, disposable consumables, drip-control features

Data storage: Built-in SD card with end-of-run report generation

Power: 300 W

Dimensions: 560 × 620 × 500 mm (22.05 × 24.41 × 19.69 in)

Weight: 54 kg (119.0 lb)

APPLICATIONS

BUILT AROUND YOUR LABORATORY WORKFLOW

Designed to support automated nucleic acid extraction and magnetic-bead sample preparation across clinical, diagnostic, and research workflows.

  • High-volume DNA and RNA extraction
  • Blood and body-fluid processing
  • Animal and plant tissue workflows
  • Clinical, diagnostic, and research sample preparation
  • Workflows requiring sample volumes up to 10 mL
  • Optional integration with robotic arms and liquid-handling systems
RECOMMENDED PUREMAGiX® KITS

RECOMMENDED CHEMISTRY FOR THIS AUTOMATION PLATFORM

Explore PureMAGiX® extraction kits selected to align with the throughput, sample types, and workflow capabilities of this system.

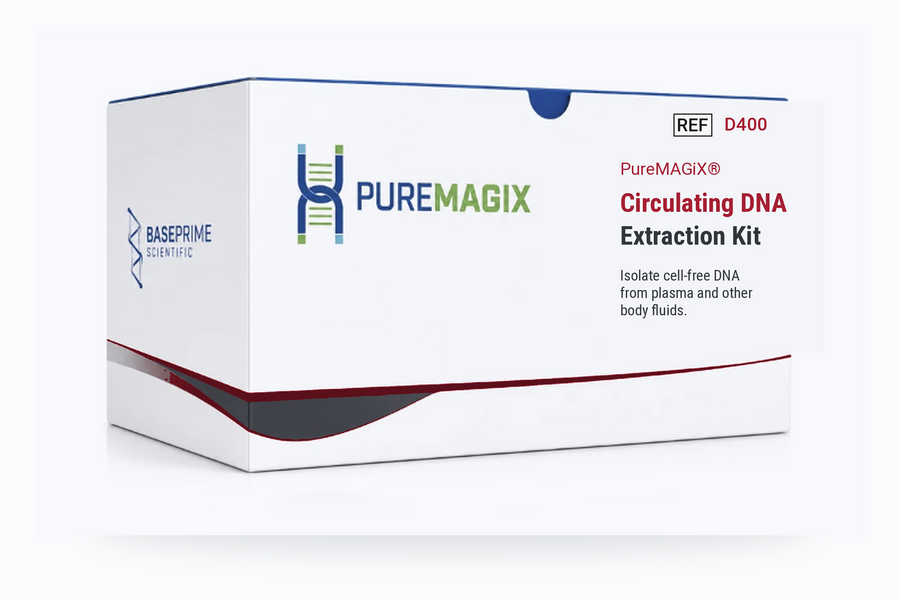

pureMAGiX® Circulating DNA Extraction Kit (D400)
PUREMAGiX® EXTRACTION KIT

pureMAGiX® Circulating DNA Extraction Kit (D400)

View Kit

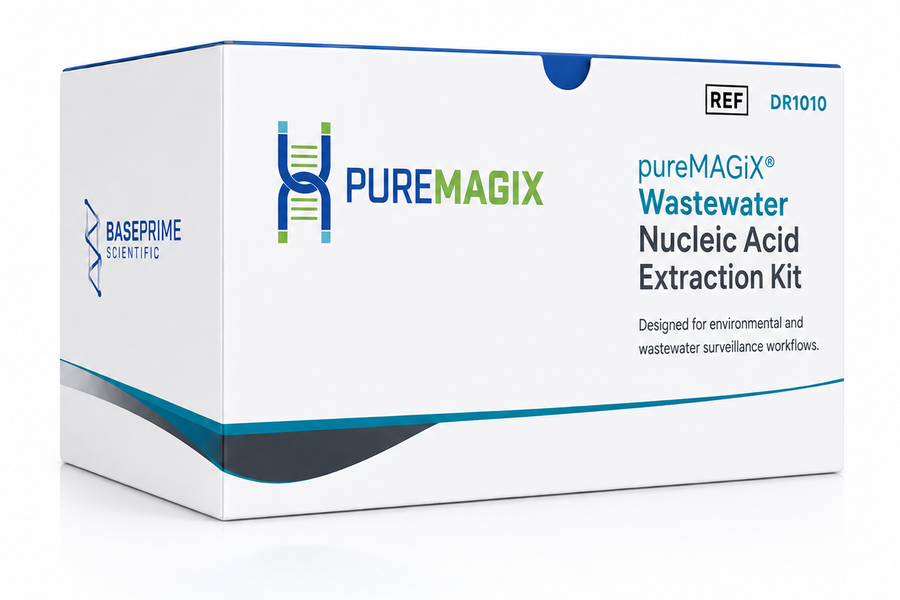

pureMAGiX® Wastewater Nucleic Acid Extraction Kit (DR1010)
PUREMAGiX® EXTRACTION KIT

pureMAGiX® Wastewater Nucleic Acid Extraction Kit (DR1010)

View Kit
Additional PureMAGiX® chemistry, kit formats, and workflow configurations may be available based on your laboratory requirements.
RECOMMENDED CONSUMABLES

CONSUMABLES CONFIGURED FOR THIS AUTOMATION PLATFORM

Explore plates, tip combs, and workflow consumables selected to support reliable operation with this system.

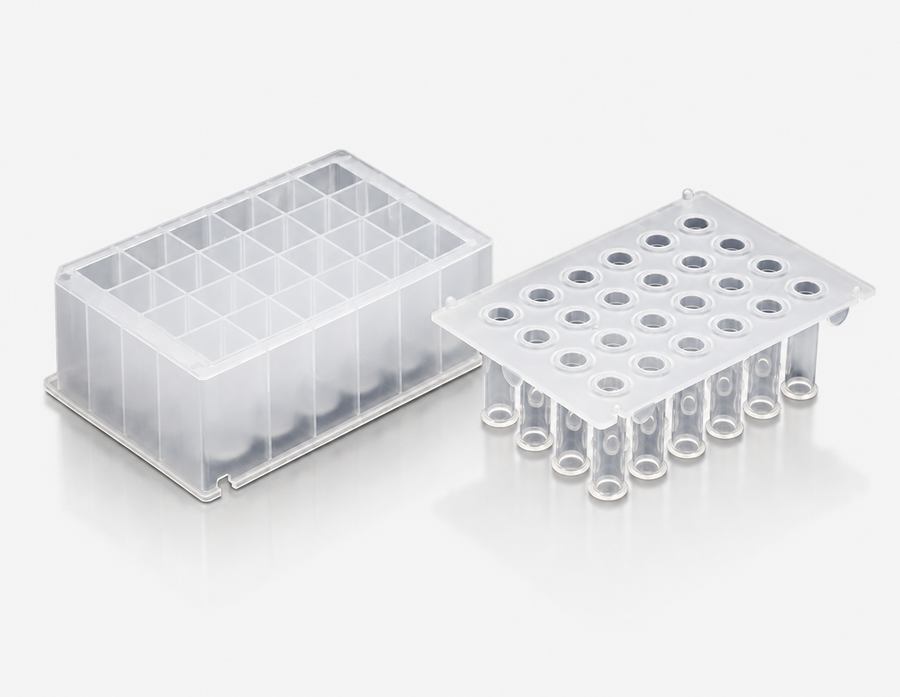

BasePrime 24-Well Deep-Well Plate + Tip Comb Set
AUTOMATION CONSUMABLE

BasePrime 24-Well Deep-Well Plate + Tip Comb Set

View Product

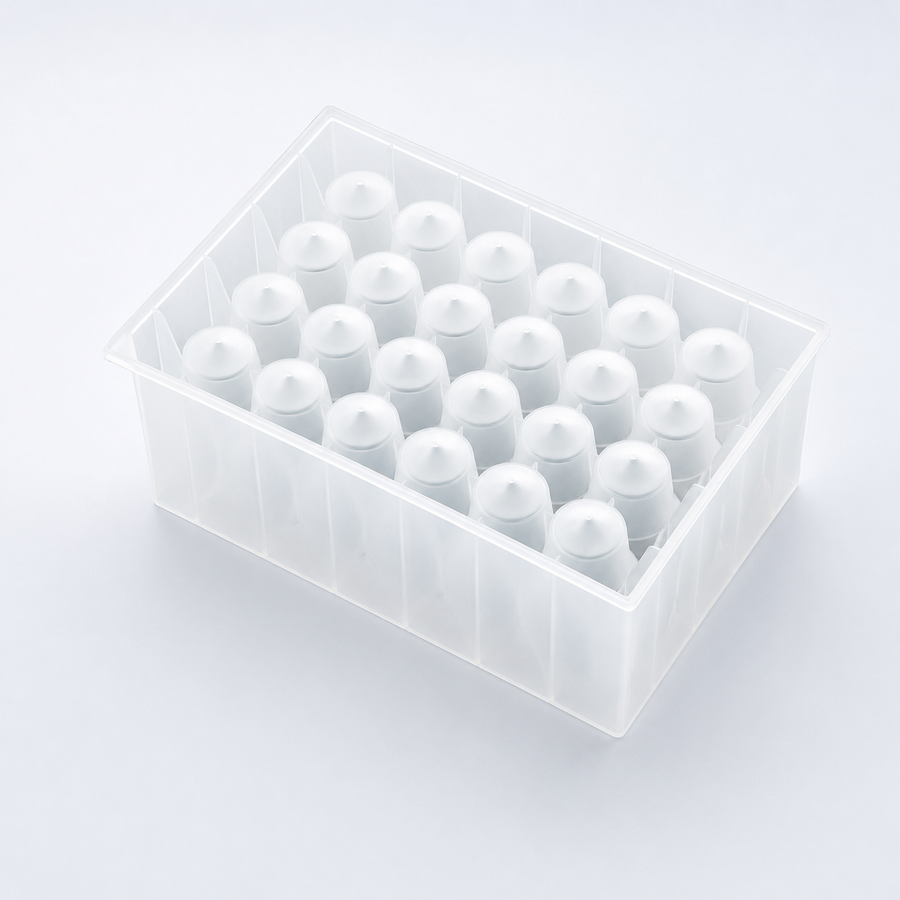

BasePrime 24-Well Deep-Well Plate, 5.0 mL, for Magnetic Processing
AUTOMATION CONSUMABLE

BasePrime 24-Well Deep-Well Plate, 5.0 mL, for Magnetic Processing

View Product
